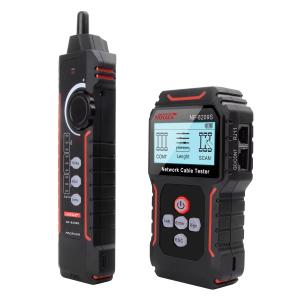

3.7V Lithium Battery Cable Tester - Network Line Tester with LCD Display for RJ45/Phone Wires, Portable Wire Detector Tool
Feature
1.Dual scan modes selectable: AC filter & Non AC filter.
2.Detect AC voltage presence (70V-1000V).
3.Test physical status for STP, UTP lan cable.
4.Measure cable length accurately , the range is 500m.
5.Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
6.PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).
7.Quallity verify the crimping crystal.
| Material | ABS |
| Package Weight | 460g / 16.23oz |
| Package Size | 23 * 16.5 * 4.5cm / 9.06 * 6.50 * 1.77in |
| LCD Display | 128*64 dot-matrix with backlight |
| Power Supply | 3.7v 1400mAh lithium battery |
| Auto-off Time | 15min/30min/60min/OFF |
| Voltage Protection | DC48V, 5mA |
| Max. Working Current | <150mA |
| Size | 125 * 70 * 32mm / 4.92 * 2.76 * 1.26in |
| Cable Type | CAT5, CAT6, (STP & UTP) |
| Test with Switch Directly | Yes |
| Max. Range | 600m |
